EC-1006M-4

UL 94V-0 Potting Compound

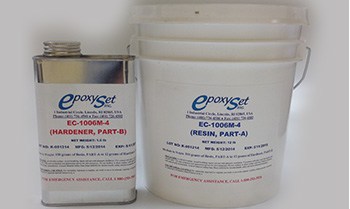

Ec 1006m 4 jpg

EC-1006M-4

EC-1006M-4 is an electronic grade, flexible, epoxy potting compound used extensively in potting RFI filters for use in military applications. Unlike most epoxy potting compounds that can be very hard and rigid, EC-1006M-4 is soft and flexible like a polyurethane but is much easier to handle. EC-1006M-4 exhibits very little stress onto delicate parts as well as very good resistance to vibration. It also exhibits very low electrical leakage resulting in high efficiency. EC-1006M-4 is UL-94V0 approved for as low 3mm.

Product Specifications

No.of Components 2
Mix Ratio by Weight 100/12
Mixed Viscosity @RT(cps) 3000-5000
Pot Life @25°C(100 gram) 2 hrs
Recommended Cure 2 hrs @ 100°C
Alternate Cure 24-48 hrs @ 25°C
Color Black
Specific Gravity 1.62
Hardness(Shore) A-85
Refractive Index NA
Lap Shear Strength @25°C(psi)
Tg(°C) 28
CTE(Below Tg)10-6/°C >80
Service Temp.Range -55°C to 120°C
Thermal Conductivity(W/m°K) 0.8
Volume Resistivity(500 V) >1014

Recommended Applications

  • UL 94V-0 Potting
  • RF Filter Potting
  • Epoxy Encapsulation
  • Motor Stator Potting
